Decimator Quad – SDI/HDMI Multi-viewer

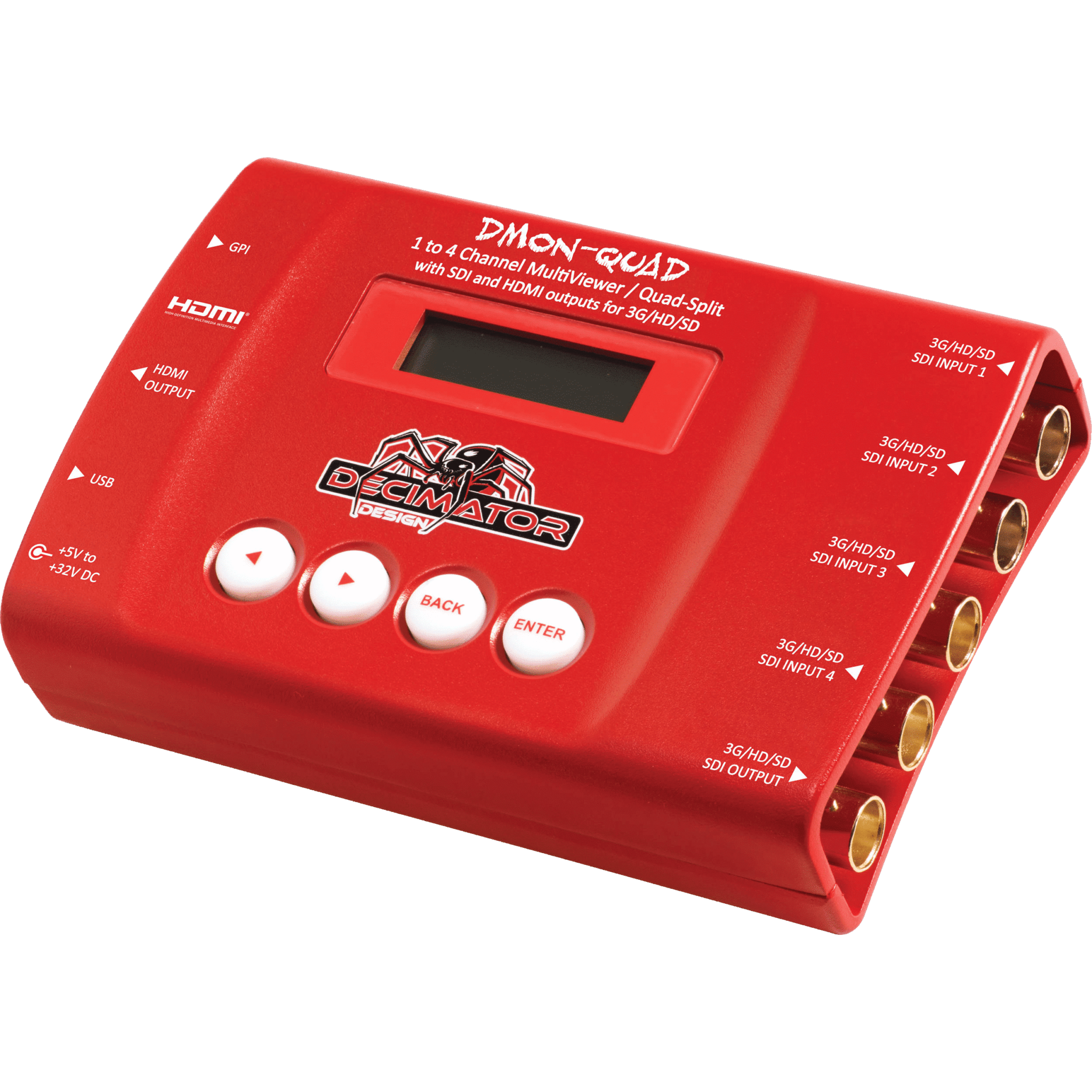

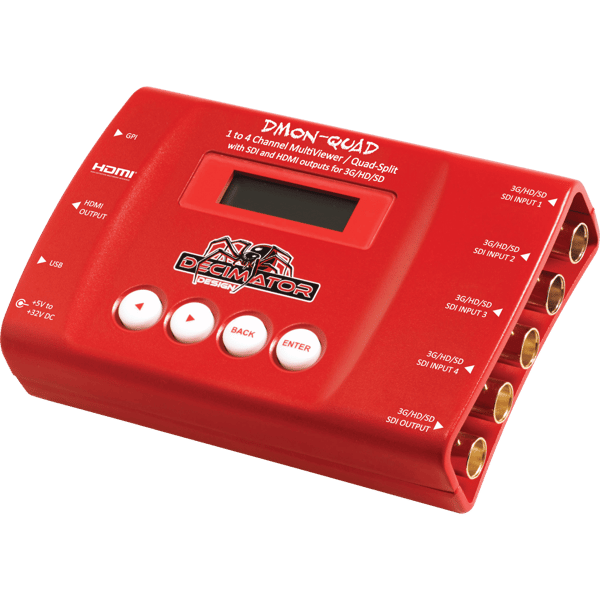

Decimator Design DMON-QUAD (DMONQUAD) 1 to 4 Channel Multiviewer/ Quad-Split with SDI and HDMI outputs for 3G/HD/SD. A small, low-cost, professional SDI MultiViewer / Quad-Split with SDI and HDMI outputs with Custom Layouts. Low latency, low power, no fan.The DMON-QUAD is a truly portable converter, that incorporates Decimator Designs new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

• 1x GPI on RJ-45 connector for Tallies and Remote Switching
• 1x RS422/485 on RJ-45 connector for Dynamic UMD and Tallies
• 1x USB port for control and firmware updates
• 1x Robust Aluminium box
• 1x Metal Thread Locking DC Power Socket
• 1x Power Supply
• 1x HDMI Cable
• 1x USB Cable

A small, low-cost, professional SDI MultiViewer / Quad-Split with SDI and HDMI outputs with Custom Layouts. Low latency, low power, no fan.The DMON-QUAD is a truly portable converter, that incorporates Decimator Designs new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

• Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
• Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Horizontal and/or Vertical image flipping per window
• Audio ID overlay
• Tallies can be applied to either Tally Boxes (Default) or Border
• Tally boxes allows for up to 4 Tallies per window
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
• The DMON-QUAD is a truly portable converter, that incorporates our easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
