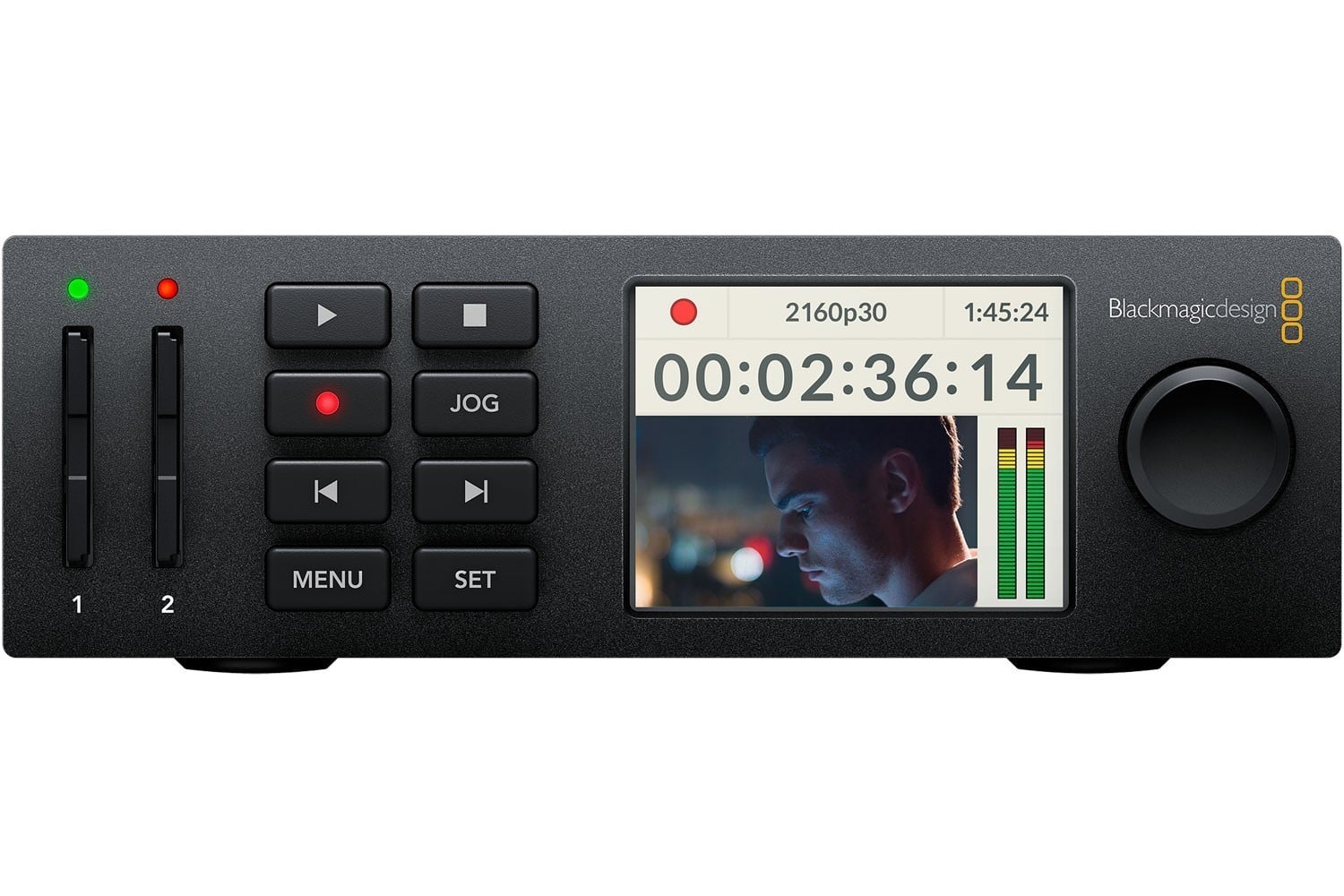

Blackmagic Hyperdeck Studio Mini

It might be small, but you still get powerful features, such as 3G-SDI in and out, HDMI output, dual SD card media slots, built in sync and timecode generators, front panel controls and both AC and DC power inputs. You can even connect the USB to a computer as HyperDeck Studio HD Mini works like a webcam so you can use any video software!

Connections:
SDI Video Inputs
1
SDI Video Outputs
1
SDI Rates
270Mb, 1.5G, 3G.
HDMI Video Outputs
1
Screen
2.2 inch LCD
Timecode Connections
1 x BNC In, 1 x BNC Out.
Reference Connections
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
SDI Audio Inputs
16 channels embedded audio.
SDI Audio Outputs
16 channels embedded audio.
HDMI Audio Outputs
8 channels embedded audio.
Remote Control
1 x RS-422 In.
Recorder Configuration
Via user interface or
Blackmagic HyperDeck Ethernet Protocol.
Ethernet
1Gb/s
Computer Interface
1 x USB Type-C 3.0 (up to 5Gb/s) for
external drive recording, webcam out,
software configuration and updates.
